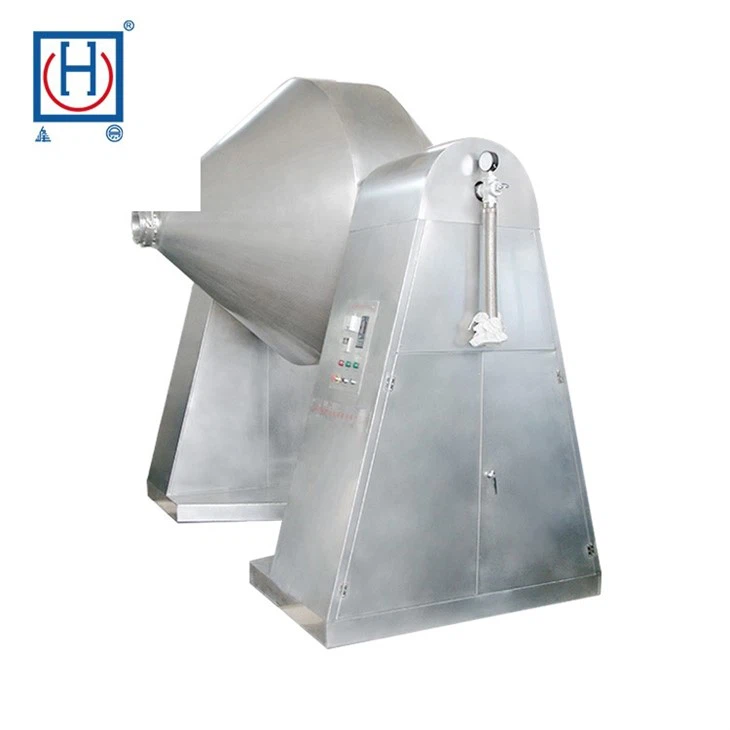

Rotary Cone Vacuum Dryer
Taw qhia
Daim ntawv thov tseem ceeb:
Lub khob hliav qab lub tshuab nqus tsev yog tsim nyog rau lub tshuab nqus tsev ziab ntawm cov hmoov thiab granular cov ntaub ntawv nyob rau hauv cov tshuaj, khoom noj khoom haus, tshuaj, thiab lwm yam lag luam. Nws yog tshwj xeeb tshaj yog haum rau ziab ntawm cov ntaub ntawv hauv qab no: cov neeg uas muaj kev kub ntxhov siab, yooj yim oxidation, crystals uas yuav tsum tsis txhob raug puas tsuaj, cov uas siv cov kuab tshuaj, thiab cov uas muaj stimulation siab thiab toxicity.
Yam ntxwv:
Cov khoom siv cua sov saum npoo yog hloov kho tas li, cov txheej txheem ziab yog nrawm, thiab cov khoom sib npaug qhuav thaum lub thawv tig. Txhawm rau kom tsis txhob kis cov ntaub ntawv, lub tshuab nqus tsev nqus lub tshuab nqus tsev siv cov cua sov tsis ncaj.Nws yooj yim siv thiab ntxuav, thiab tsis muaj qhov chaw tuag.To txhim kho cov nyhuv sealing thiab ua kom muaj kev saib xyuas yooj yim dua, txoj kev zoo sealing yog siv.
Txoj cai ua haujlwm
Cov dej hauv cov khoom siv diffuses mus rau saum npoo los ntawm qhov sib txawv ntawm qhov sib txawv los yog qhov sib txawv ntawm qhov sib txawv ntawm lub tshuab nqus tsev nqus tsev vacuum. Cov dej molecules (los yog lwm yam tsis-condensing gases) ces tau txaus kinetic zog ntawm cov khoom nto, diffuse mus rau qhov tsawg-pressure qhov chaw ntawm lub tshuab nqus tsev chamber tom qab kov yeej kev sib nrig sib attraction ntawm molecules, thiab ces pumped rau hauv lub tshuab nqus tsev chamber.
Technical parameters
| Qauv | SZG-50 | SZG-100 | SZG-350 | SZG-500 | SZG-1000 | SZG-1500 | SZG-2000 | SZG-3000 | |
| Tag nrho ntim (L) | 50 | 100 | 350 | 500 | 1000 | 1500 | 2000 | 3000 | |
| Rotating ceev (rpm) | 0-10 | 0-6.5 | 0-6.5 | 0-6.5 | 0-6.5 | 0-6.5 | 0-6 | 0-5 | |
| Lub zog (kw) | 1.1 | 1.1 | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | |
| Loading coefficient | Tsawg dua los yog sib npaug li 50% | ||||||||
| Cua sov nruab nrab | Chav, dej kub | ||||||||
|
Ua haujlwm siab (Mpa) |
Sab hauv | -0.08-0.1 | |||||||
| Sab hauv txheej | 0.25-0.3 | ||||||||
|
Ua haujlwm kub (degree) |
Sab hauv | Tsawg dua los yog sib npaug li 80 | |||||||
| Sab hauv txheej | Tsawg dua los yog sib npaug li 140 | ||||||||
|
Zuag qhia tag nrho Dimensions (L*W*H) |
1860*700 *1560 |
1962*700 *1650 |
2212*750 *1980 |
2362*800 *2140 |
2362*1000*2590 | 2962*1000*2590 | 3500*1500*2665 | 4370*1700*3120 | |
| Qhov hnyav (kg) | 500 | 600 | 800 | 1000 | 2000 | 2500 | 3000 | 5000 | |
FAQ
1. Q: Yog tias kuv yuav tsum tau nyob hauv koj qhov chaw ob peb hnub, puas tuaj yeem sau lub tsev so rau kuv?
A: Nws yog ib txwm kuv txaus siab, cov kev pabcuam hauv tsev so muaj.
2. Q: Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi, koj puas tuaj yeem xa tuaj rau kuv kuaj?
A: Peb qhov tsawg kawg nkaus kom muaj nuj nqis yog 1 teeb, raws li peb cov khoom yog cov cuab yeej siv tshuab, nws nyuaj rau xa koj cov qauv, txawm li cas los xij, peb tuaj yeem xa koj cov catalog, zoo siab tos txais koj tuaj xyuas peb lub tuam txhab.
3. Q: Kuv puas tuaj yeem paub tias qhov kev them nyiaj twg yuav raug lees txais los ntawm koj lub tuam txhab?
A: Txog tam sim no 100% T / T ua ntej xa zaub mov, thiab 30% tso nyiaj them los ntawm T / T, tshuav nyiaj them los ntawm T / T lossis L / C.
Cim npe nrov: Tuam Tshoj rotary cone nqus tsev vacuum tshuab manufacturers, lwm tus neeg, Hoobkas
