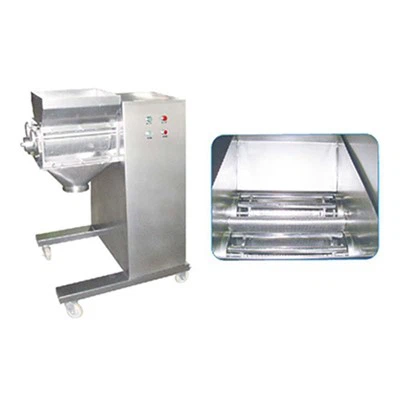

ntub thiab qhuav Dual Purpose Granulator
Taw qhia
Daim ntawv thov tseem ceeb:
Lub tshuab no yog cov cuab yeej tshwj xeeb uas yuam kom dhau cov hmoov ntub dej sib tov los ntawm lub sieve los tsim cov khoom raws li qhov zoo thiab qhov tsis zoo ntawm lub nruas tig.
Lub tshuab no tsuas yog tsim nyog rau kev tsim ntau yam tshwj xeeb ntawm cov khoom hauv kev lag luam xws li tshuaj, tshuaj, thiab zaub mov. Tom qab ziab, nws tuaj yeem siv los nias ntau yam khoom zoo li tus. Lub tshuab no tseem tuaj yeem siv los txhuam thiab ua kom cov ntaub ntawv qhuav rau hauv cov blocks.
Txoj Cai Ua Haujlwm
Tsav los ntawm lub tshuab hluav taws xob, V-siv pulley, lub iav iav thiab cab iav, nyob rau hauv qhov kev txiav txim ntawm ib qho eccentric crankshaft thiab lub lifting khib, lub iav ncej tsav lub pentagonal cov menyuam tig ib ntus. Cov khoom tsis tu ncua txav thiab tswj tau los ntawm kev tshem tawm ntawm qhov screen thiab lub granulation cutter rau extrude hais. Nws lub peev xwm ntau lawm txawv nrog cov dej noo, hom, viscosity, thiab mesh lub hom phiaj ntawm cov khoom. Thiab nws tuaj yeem tsim ntau yam tshwj xeeb ntawm cov khoom.
Thaum crushing cov ntaub ntawv qhuav, cov ntaub ntawv condensed raug cuam tshuam rau crushing nyob rau hauv lub nruas ua los ntawm ib tug pentagonal roller thiab yuam kom dhau los ntawm sieve.
yam ntxwv qauv
(1) Cov qauv ntawm lub hopper thiab granulation ntaus ntawv yog tsim los ntawm cov hauv paus ntsiab lus ntawm kev yooj yim installation, tu, thiab siv.
Muab xam. Tag nrho cov khoom nyob rau hauv kev sib cuag nrog cov ntaub ntawv yog ua los ntawm stainless hlau, kom ntseeg tau cov huv ntawm cov khoom.
(2) Cov khoom ntawm cov khoom tsim khoom yog raug kaw kom tiv thaiv cov roj lubricating los ntawm kev sib xyaw nrog cov khoom siv raw.
(3) Lub vijtsam clamping raj siv los tuav lub vijtsam kom ntseeg tau tias lub vijtsam yog nruj nreem txuas rau lub nruas rotating thiab tsis xoob.
Txav mus, kho qhov nruj ntawm lub vijtsam los ntawm lub tes tuav, thiab ntsuas qhov kho qhov screen clamp raj nrog lub ratchet thiab pawl.
(4) Cov neeg siv tuaj yeem xaiv qhov sib thooj sieve raws li qhov yuav tsum tau ua ntawm cov khoom thiab tsim ntau yam tshwj xeeb ntawm cov khoom.
Installation thiab Commissioning
1. Tom qab lub tshuab nyob rau hauv qhov chaw, nws yuav tsum tau muab tso rau smoothly thiab grounded.
2. Qhib lub thawv npog thiab ntxiv cov roj lubricating rau lub gearbox.
3. Thaum lub sij hawm sim tsav, yuav tsum tau saib xyuas seb puas muaj cov suab nrov txawv txav, txhawm rau kom nres lub tsheb kom raws sijhawm rau kev tshuaj xyuas thiab kev daws teeb meem.
4. Thaum txhim kho lub vijtsam, nws yog ib qho tsim nyog yuav tsum ua kom lub vijtsam nruj ua raws li lub kaus mom kawg ntawm ob qho kawg kom tsis txhob muaj cov khoom xau.
5. Ua ntej ua haujlwm, ua tib zoo xyuas seb cov fasteners ntawm txhua feem ntawm lub tshuab puas xoob.
6. Lub tshuab yuav tsum khiav ntawm tsis muaj load rau 3-5 feeb thiab muab tso rau hauv ntau lawm tom qab ua haujlwm li qub. Nws tsis pom zoo kom ntxiv cov khoom siv ntau dhau thaum pub mis, thiab nws raug nquahu kom tswj tau kwv yees li 2/3 ntawm qhov ntim.
5, Kev tu thiab kev nyab xeeb kev nyab xeeb
1. Lub lubricating roj (46 # txhua yam roj) nyob rau hauv lub thawv txo thiab lubricating roj nyob rau hauv lub puab chamber ntawm dov ncej yuav tsum tau hloov tsis tu ncua.
2. Cov khoom ntawm cov khoom siv particle tsim yuav tsum tsis tu ncua wiped huv si.
3. Los xyuas kom meej lub lubrication tej yam kev mob ntawm cab iav khub kis tau tus mob nyob rau hauv lub gearbox, qhov kub ntawm lub gearbox thaum lub sij hawm ua hauj lwm yuav tsum tsawg tshaj li 50 degree.
4. Lub tshuab yuav tsum muaj kev ruaj ntseg hauv av, thiab nws cov av tiv thaiv yuav tsum tsawg dua 4 Ω.
5. Tsis txhob arbitrarily tshem tawm cov khoom tiv thaiv los ntawm cov khoom siv hluav taws xob.
Technical parameters
FAQ
1. Q: Koj puas yog cov chaw tsim khoom, tuam txhab lag luam lossis ib tus neeg thib peb?
A: Peb yog cov chaw tsim khoom, peb muaj peb lub Hoobkas
2. Q: Koj lub Hoobkas nyob qhov twg?
A: Peb lub Hoobkas chaw nyob yog: No.9 Yungu Road, Zhutang Town, Jiangyin City, Jiangsu Province, Suav teb.
3. Q: Kuv tuaj yeem tau txais koj lub Hoobkas li cas?
A: Peb lub Hoobkas nyob ze shanghai tshav dav hlau, Wuxi Shuofang tshav dav hlau thiab Nanjing tshav dav hlau, peb tuaj yeem tos koj hauv tshav dav hlau.
